8 C900XAC 9.30-9.50X8.99-9.3 1506
SKU: 7679098

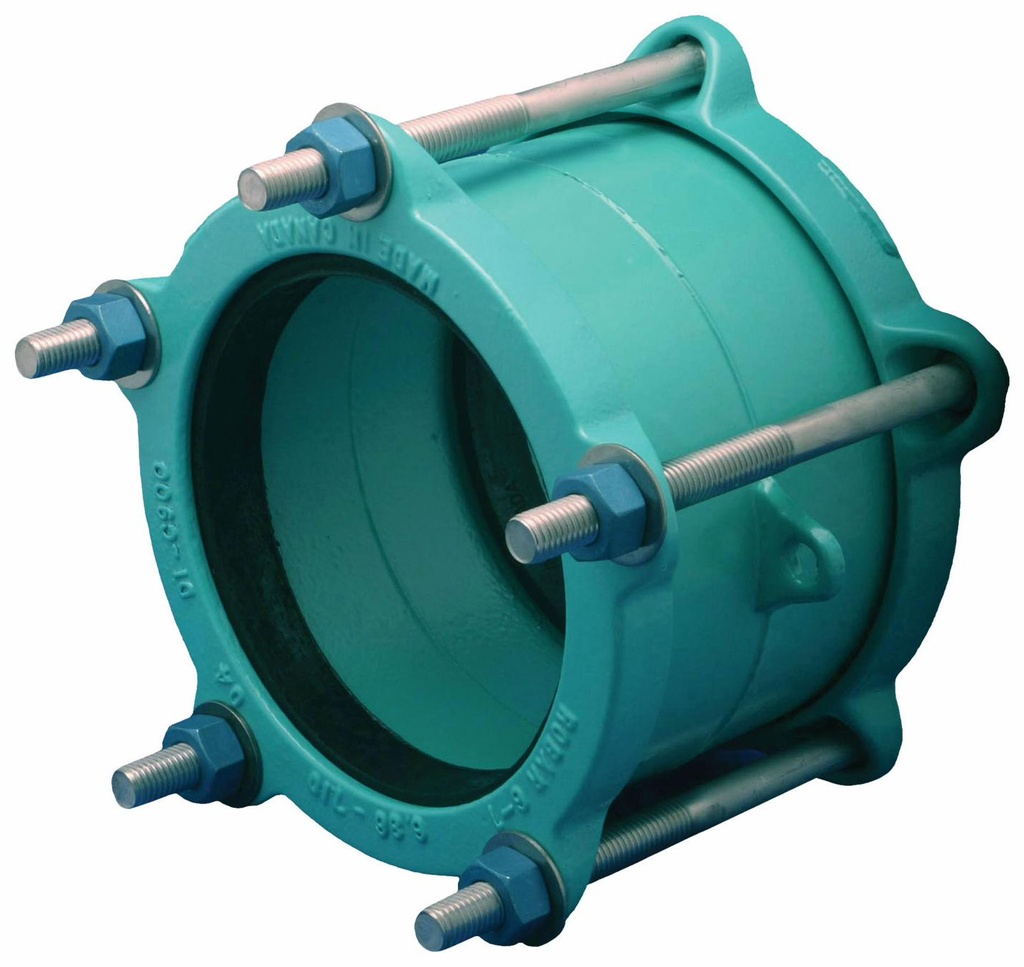

ROBAR 1506 Straight and Transition couplings are used to make a non-restrained connection between two pipes of the same nominal size but with same or different ODs. Used in areas where corrosion is a factor, the 1506 body is Epoxy coated with Stainless Steel fasteners.
Center Sleeve: Cast Ductile Iron | Torque: 70-80 ft. lbs. | Coating: Corrosion Protective Epoxy coating | Fasteners: 5/8” NC T304 Stainless Steel | Nuts coated with anti-galling compound | Working pressures : 2″ through 12″ – 300 PSI; 14″ through 24″ – 150 PSI | End Rings: Cast Ductile Iron | Gaskets: Nitrile (NBR) Rubber (Other compounds available)
Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS7b3bd5a2-1e62-4e3d-870c-49d717f0851f | Installation Manual: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS880db6ef-0cf3-4b50-9883-73b6ddf348e7 | Manufacturer Web Site: http://robarindustries.com
