1-1/4 In IPF-T-M1 1 1/4 Isolation Pump Flange
SKU: 6919982

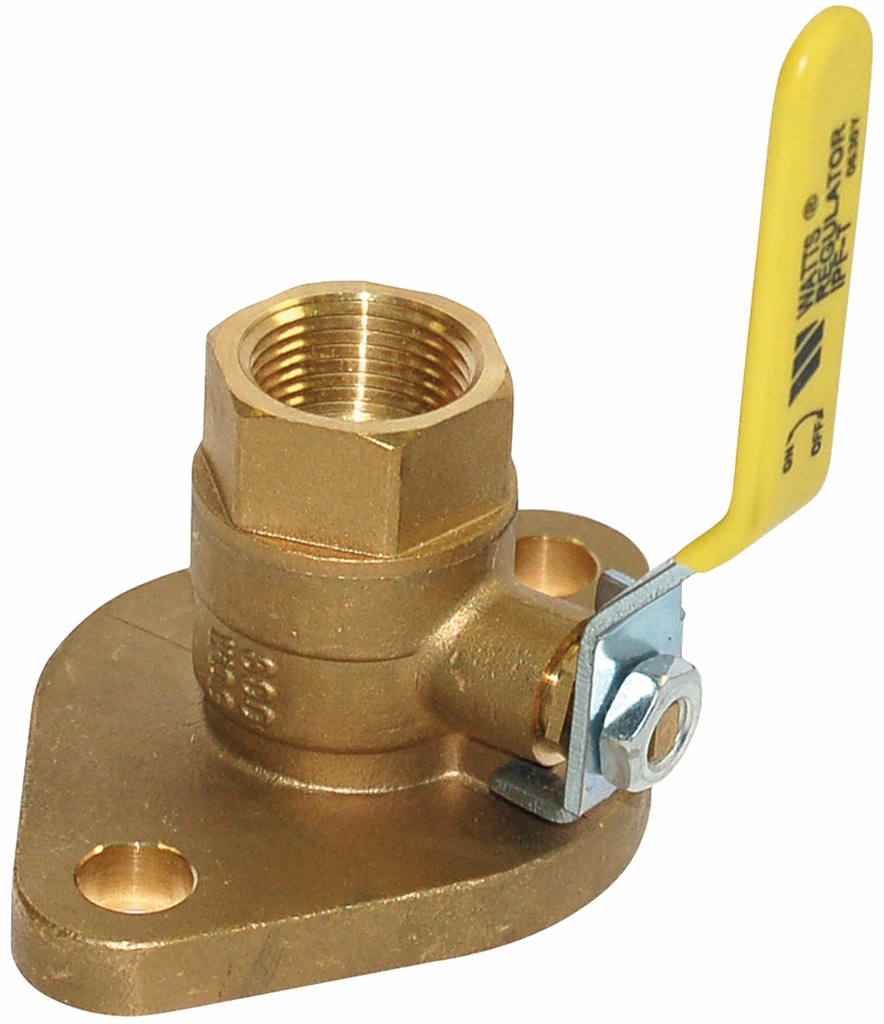

This 1 1/4 inch isolation pump flange is designed to isolate circulator pumps to facilitate circulator pump replacement or repairs. It features a brass body and flange with bottom loaded blowout proof stem, Buna-N stem O-Ring seal, virgin PTFE seat, and optional T-handle included. The pressure is rated 600 psi (41.4 bar) WOG and the maximum temperature is 406 F (208 C) at 100 psi (6.9 bar).
NPT threaded end connection | Optional T-handle included | Buna-N stem and O-ring seal | Designed to isolate circulator pumps to facilitate circulator pump replacement or repairs | Bottom loaded blowout proof stem | Virgin PTFE seats | Pressure is rated 600 psi WOG | Brass body and flange
Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS9a423c83-f3b7-46f5-b021-52d04b77e308 | Manufacturer Web Site: https://www.watts.ca | Installation Manual: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS33ee3cc2-b549-4f4e-aaba-51964b384050 | Manufacturer Web Site (French): https://fr.watts.ca | Warranty: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS758e5e0c-6b06-4ff4-9189-a94ab59b7d11 | Manufacturer Web Site: http://www.wattscanada.ca
