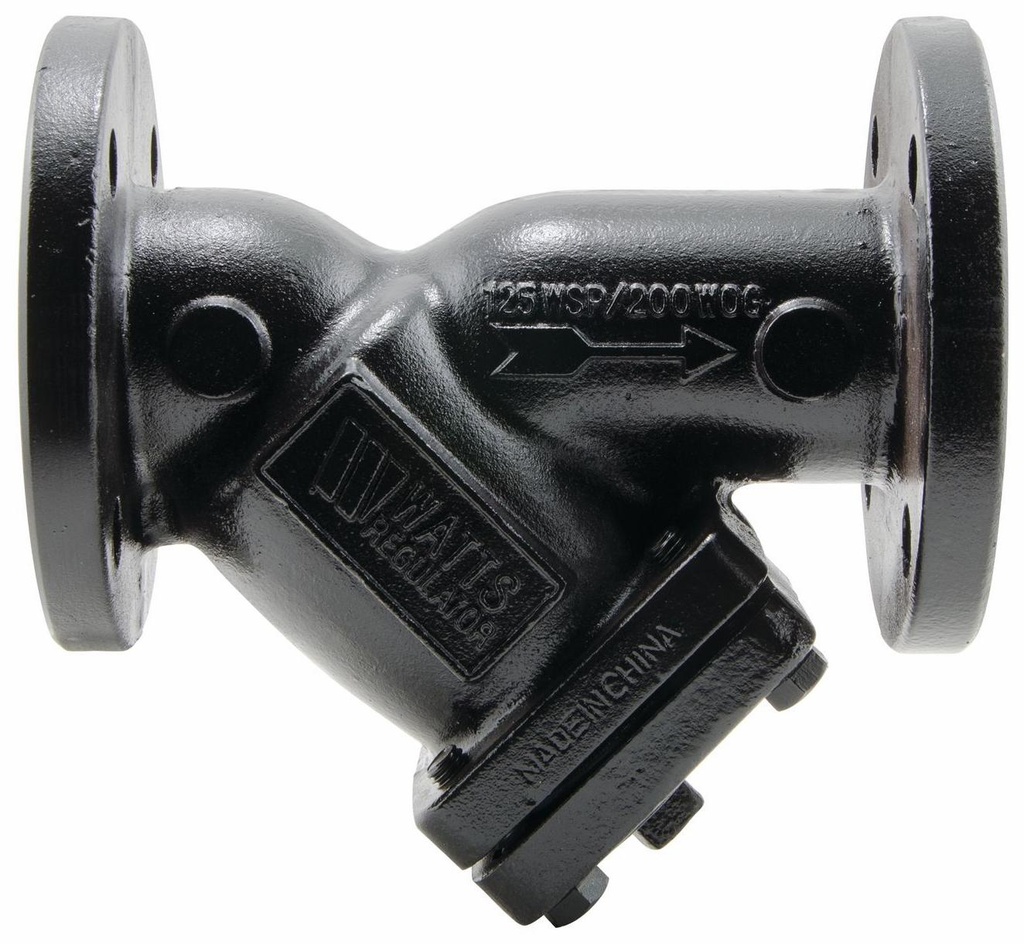

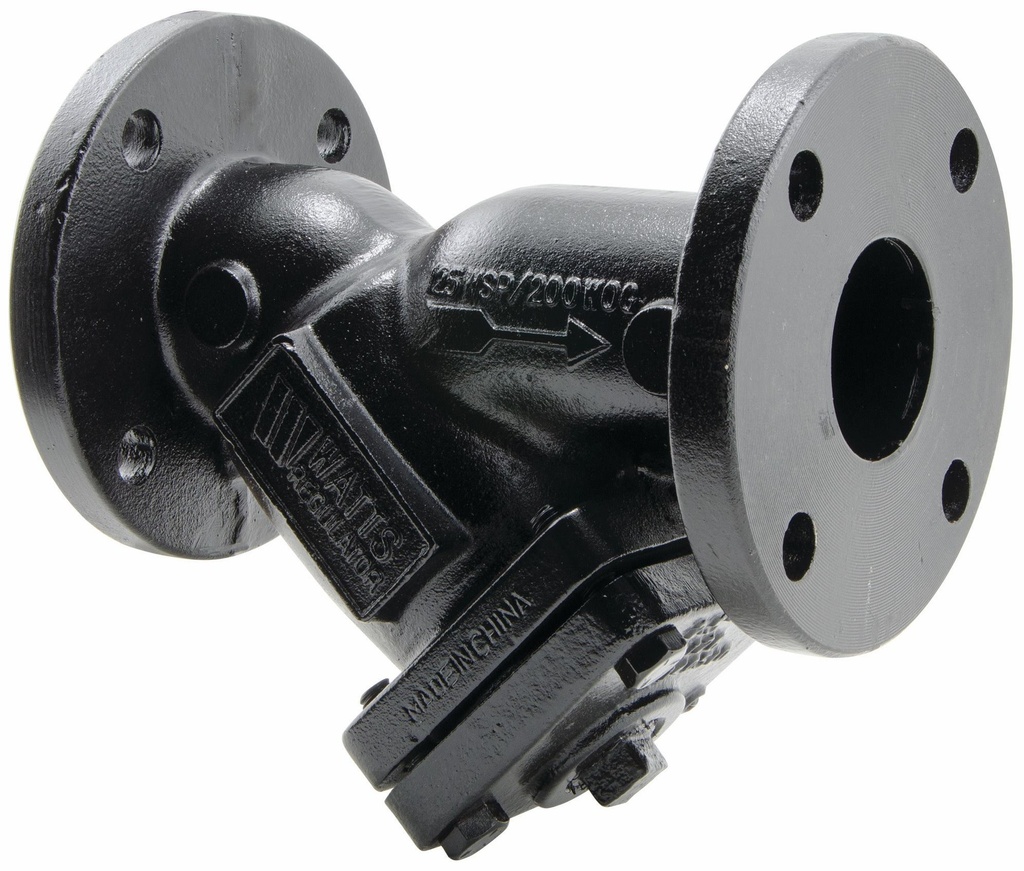

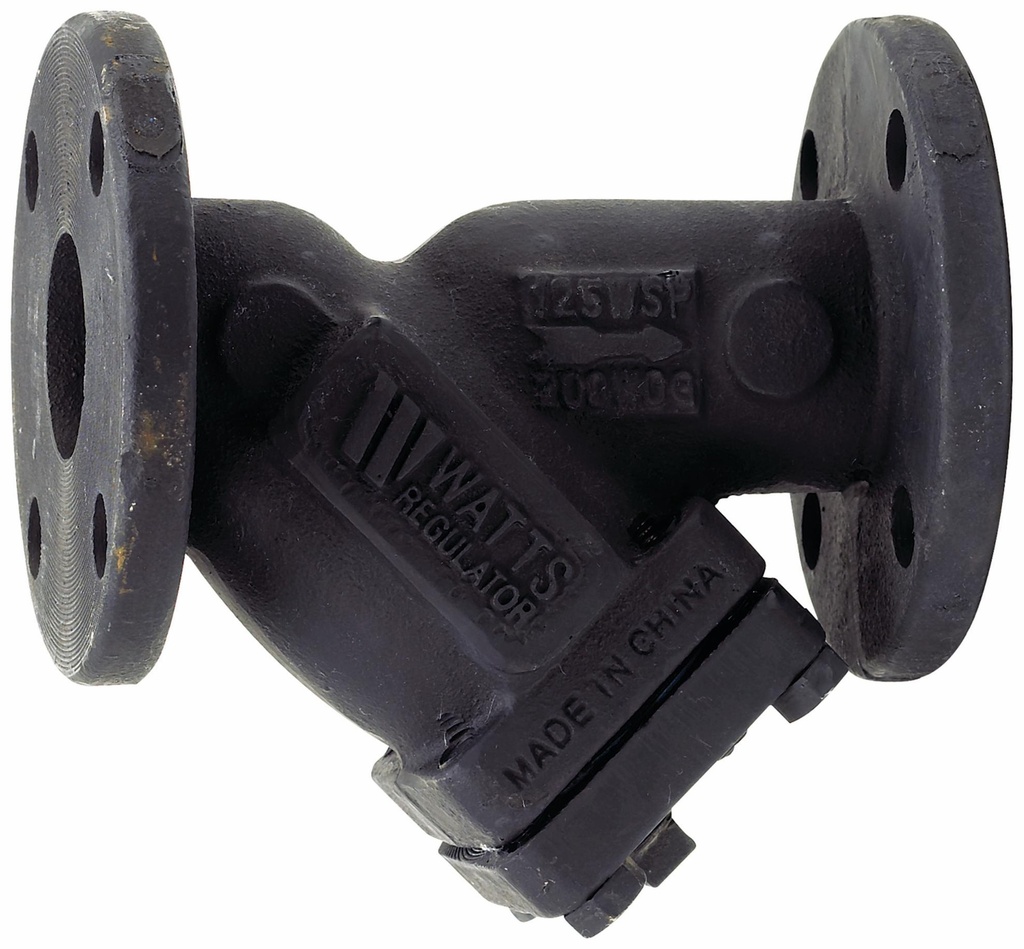

2-1/2 In 77F-DI-125 2 1/2 Wye Pattern Strainer

https://sacura.ca/web/image/product.template/166191/image_1920?unique=b44155c
SKU: 6919965

428.25 $

428.25 $

    This combination does not exist.

    This cast iron flanged wye pattern strainer 2 1/2 inch Watts model 77F-DI-125, has lead free class B cast iron body with 1/16 inch perforated screen, class 125 flanged connections, cast iron blowdown plug, stainless steel perforated screen, bolted and tapped iron retainer cap with graphite gasket and drain/blowoff connection furnished with a closure plug. Applicable for liquid and steam service to protect check valves, backflow preventers and similar controls from foreign matter. Maximum Pressure (non-shock) 200 psi (13.8 bar) at 210 degree F (99 degree C) WOG, 125 psi (8.6 bar) at 353 degree F (178 degree C) WSP.
    Flanged | Wye pattern | 304 stainless steel perforated screens | Cast iron body
