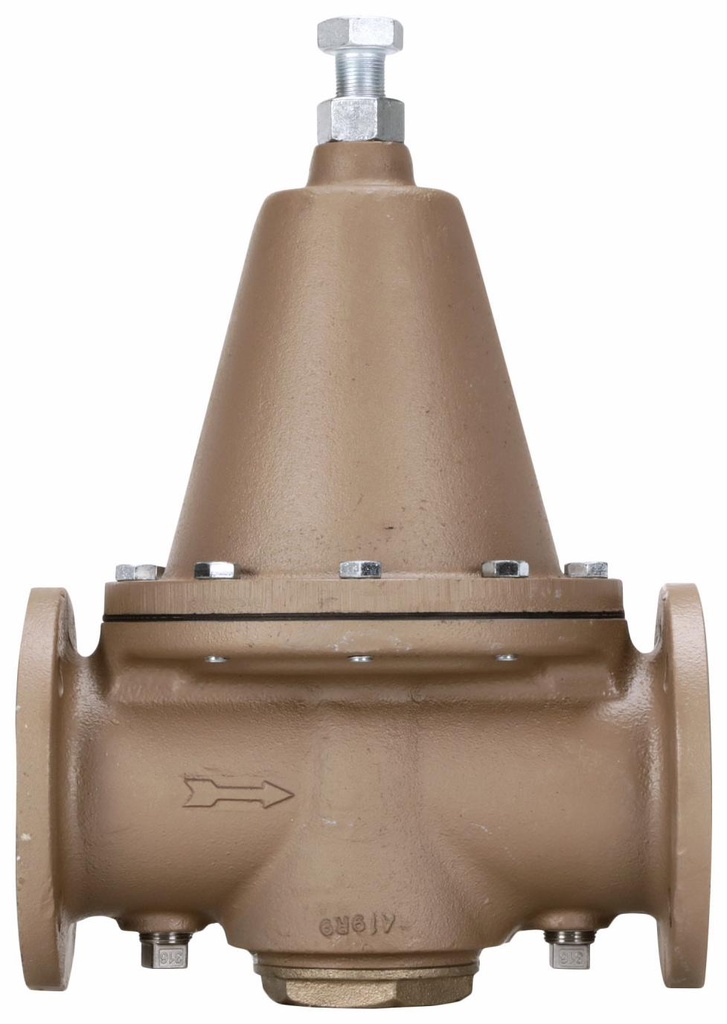

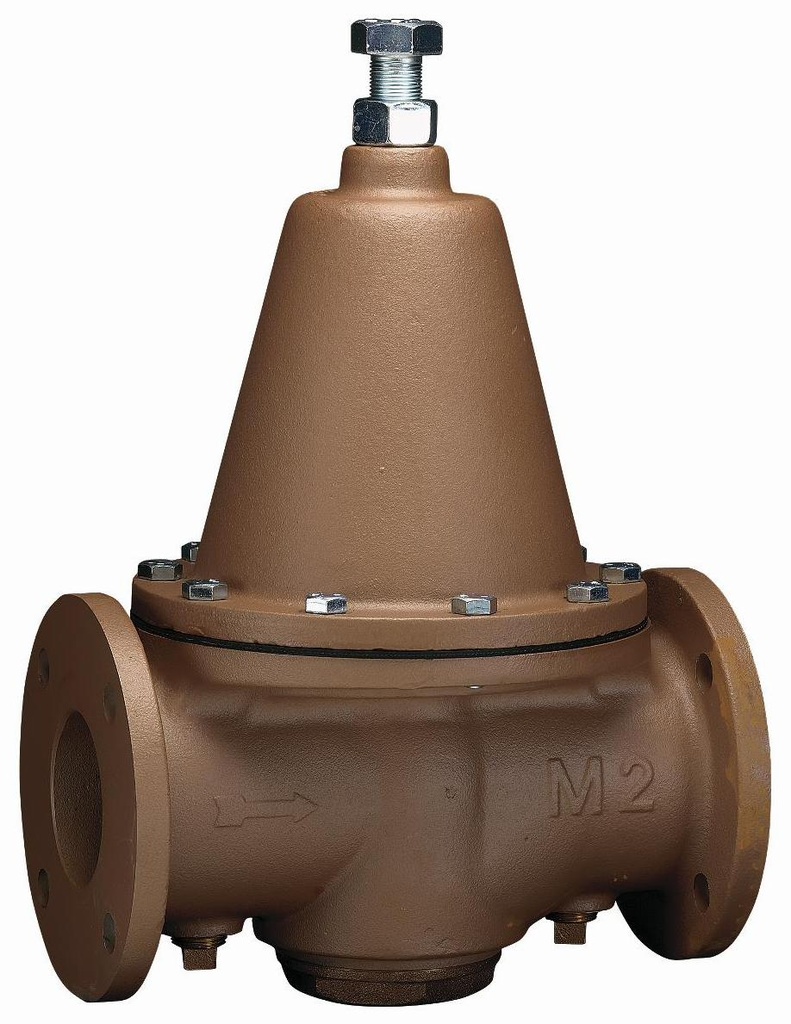

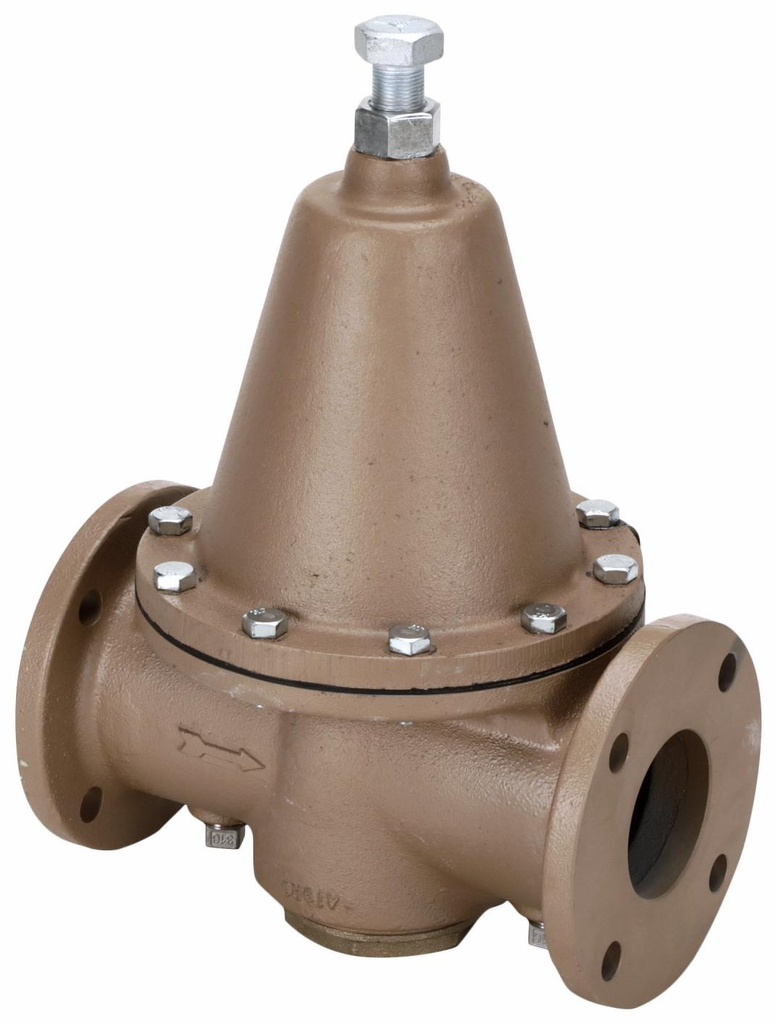

This 3 inch super capacity lead free water pressure reducing valve is commonly installed at the meter in residential, commercial and industrial buildings. It is designed to control the water pressure flowing to all the appliances and outlets within the building and provides an inexpensive means of supplying lower, more functional water pressure to outlets and appliances. It features an iron body construction, flanged end connections, high temperature resisting enlarged diaphragm for hot or cold temperatures, a sealed spring cage and seat orifice for super capacity performance and a semi balanced stainless steel piston to assure rapid response to pressure changes as well as to provide maximum flow with minor pressure drop. This valve can be used for accessible outdoor waterworks or pit installations. The adjustable reduced pressure range is 25 to 75 psi (172 to 517 kPa).
Sealed spring cage for accessible outdoor or pit installations | Lead free iron body construction | Stainless steel piston | Enlarged diaphragm, spring cage and seat orifice for super capacity performance | Sensitive spring and large diaphragm for accurate pressure control | High temperature resisting nylon reinforced diaphragm | Sealed spring cage on all models for accessible outdoor or pit installations | Serviceable in line
Manufacturer Web Site: https://www.watts.ca | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS37570e0e-ef6f-48c5-99b6-b2eb04f6740b | Manufacturer Web Site (French): https://fr.watts.ca | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DSfef86915-cff9-456c-b47e-125194d4b411 | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DSac71e0fd-dde2-42cc-ab2a-0360882938a2 | Installation Manual: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS9ca052f5-1462-41bc-b7e1-453bf02f13cc | Warranty: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS015cc7aa-d180-4635-8071-260bed83761b | Manufacturer Web Site: http://www.wattscanada.ca
