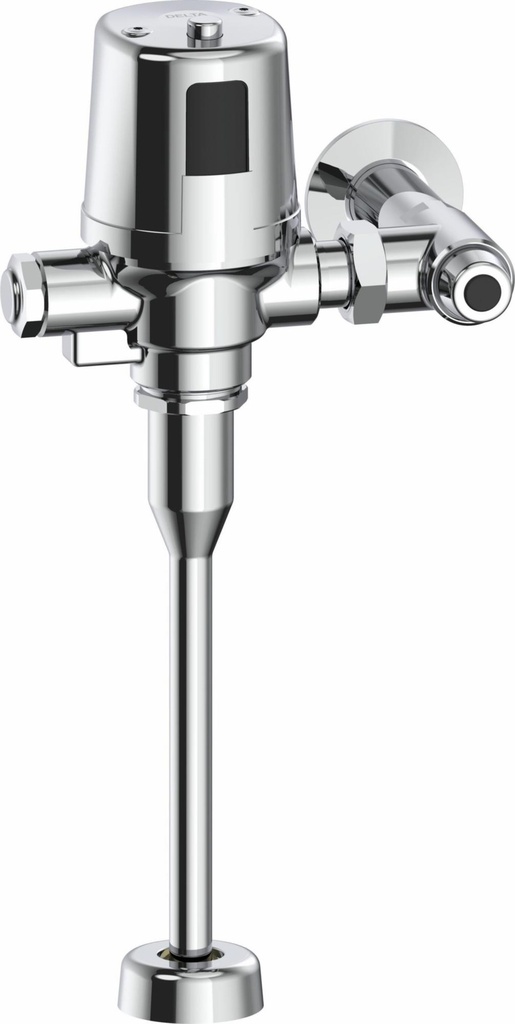

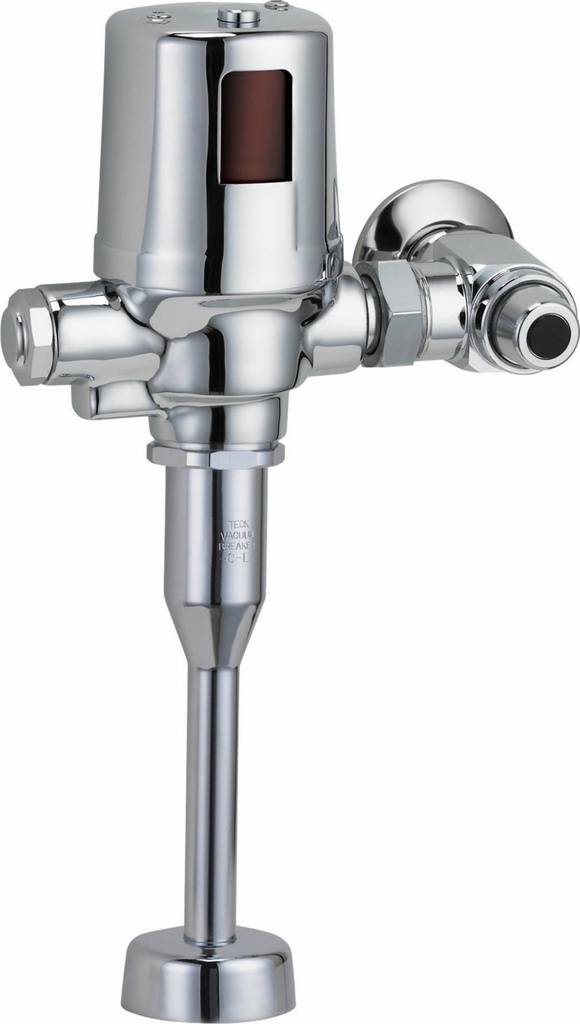

H2Optics Exposed Urinal Flush Valve

External water conserving adjustment: Factory Set to 1.9L(0.50 Gal.) - FIELD ADJUSTABLE from 0.47 to 3.78 Litre Flush (1/8 to 1.0 GAL.) | Chloramine resistant diaphragm | Electronic operated non-hold-open metal override button with 5 second lockout | Scratch resistant replaceable lens window | Polished chrome plated body. | Adjustable 121mm (4-3/4") plus or minus 11mm (7/16") inlet/valve outlet centers | ADA compliant, automatic operation battery powered infrared sensor | Four (4) size AA alkaline batteries factory installed with valve in sleep mode for easy installation | Infrared sensor range adjustment of 203mm-610mm (8"-24"), factory set at 16" (±2") | Quiet action, TECK® exposed diaphragm flush valve | Right or left-hand supply installation | 6 VDC input, 6 second arming delay | Brass diaphragm retainer | Renewable seat | Polished chrome plated vandal resistant metal cover with top mounted sensor operated H2Optics® electronics | Hinged battery housing for easy maintenance | Vacuum breaker | Set-up sensor range adjustment indicator lights | Optional 24 hour automatic flush factory set to off | Low battery flashing light (5000 flushes remaining) with battery strength indicator | 3/4" copper sweat inlet | Adjustable flow | Battery operated, batteries included | Electronic exposed flush valve | Hands-free operation | Urinal, 13" height | For 3/4" top spud urinal fixture | Body mounted sensor
