HEF-T-FOOT MINI SPLIT
SKU: 4863505

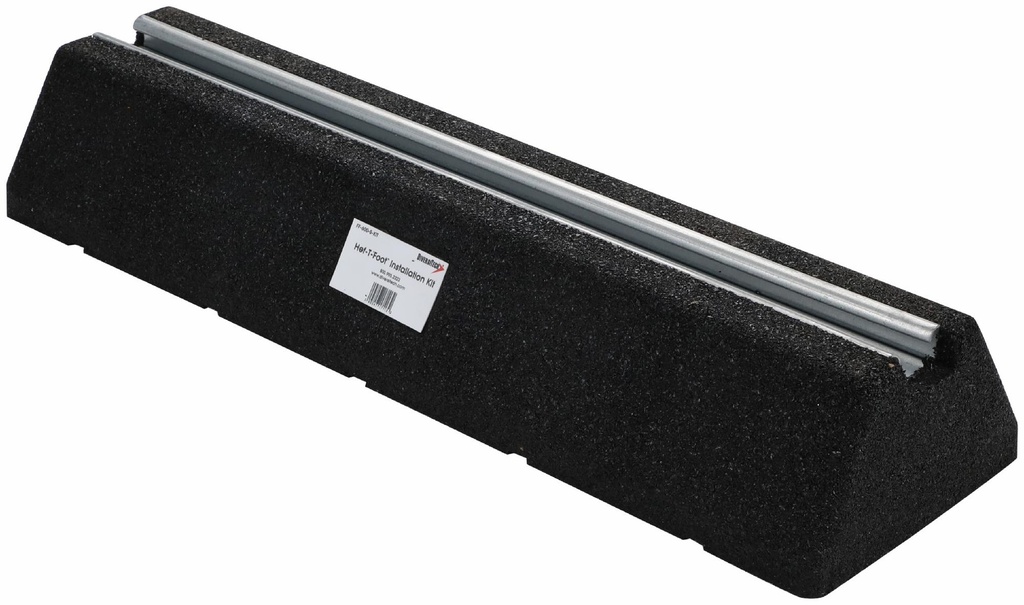

The Hef-T-Foot™ FF-600-S-KIT is a mini split installation kit that includes a pair of 23.6 in. rubber bases with strut inserts that are used to mount A/C condensing units, air source heat pumps and a variety of outdoor equipment. All necessary hardware to attach equipment to the Hef-T-Foot is included with the kit. The FF-400-S-KIT foot base dimensions are 23.62 in. L x 7.28 in. W x 3.94 in. H. The galvanized strut insert dimensions are 23.62 in. L x 1.6 in W. x .83 in. H.
The Hef-T-Foot™ is used to support small pipework, runs of cable tray, or as an alternative for supporting condensing units, air source heat pumps or a variety of outdoor equipment. | The Hef-T-Foot™ universal has three threaded inserts which allow the installer the flexibility to bolt their own strut of varying lengths to suit any installation. | Hef-T-Foot™ comes complete with .8” x 1.6” galvanized steel strut adhered to the rubber with industrial adhesive. | The Hef-T-Foot™ with strut comes in four lengths — 9.8”, 15.7”, 23.6”, and 39.4”. | Hef-T-Foot™ is manufactured from heavy duty recycled rubber. The rubber is strong and durable with drain slots molded into the underside to allow standing water to flow under the foot.
Manufacturer Product Page: https://www.diversitech.com/en-US/item/mounting-systems/mounting-blocks/hef-t-foot%E2%84%A2--FF-600-S-KIT | Manufacturer Web Site: https://www.diversitech.com/en-US/ | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS7e0556fb-53c9-4684-bf00-95d4a87bb2df | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS4fb1494e-037c-4f4b-9dea-6113be5a183c
