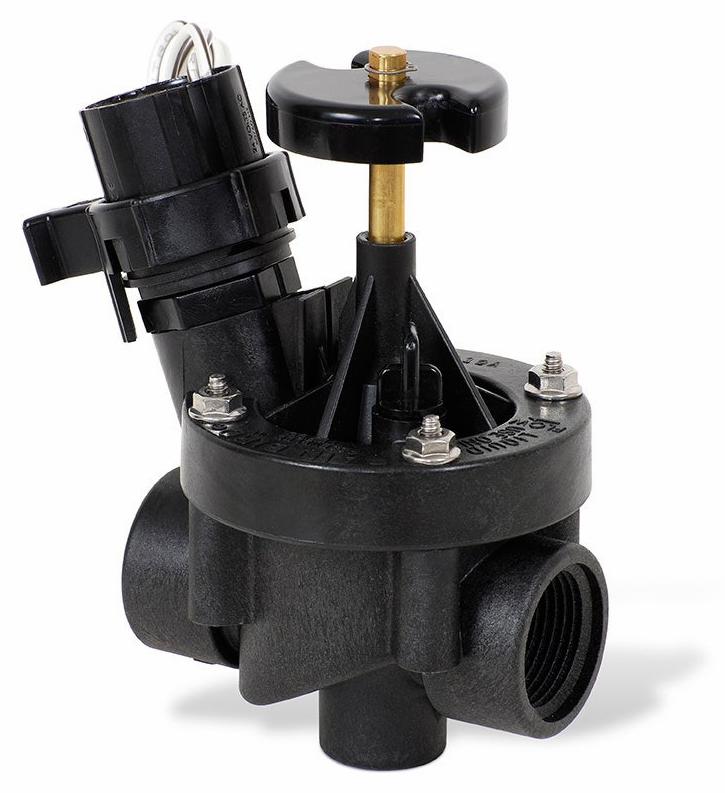

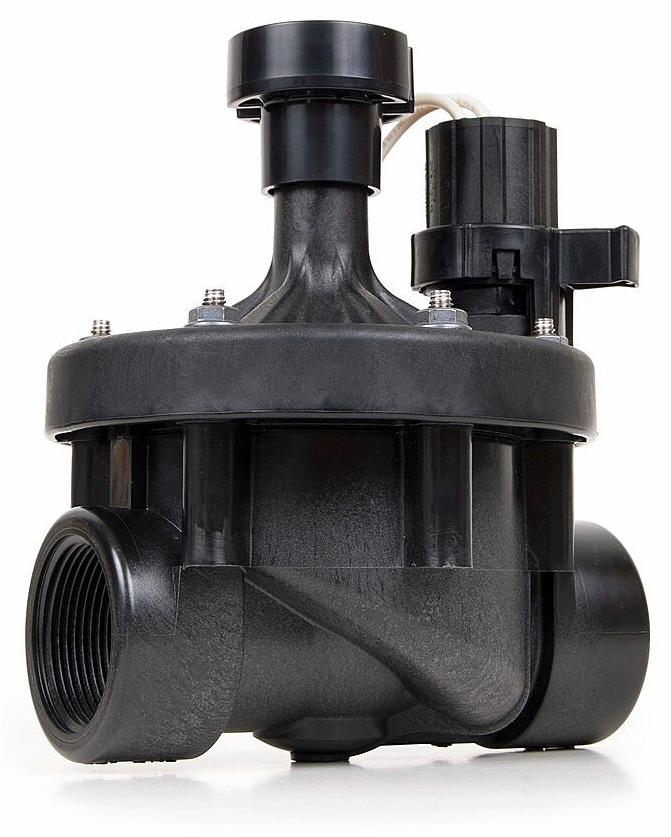

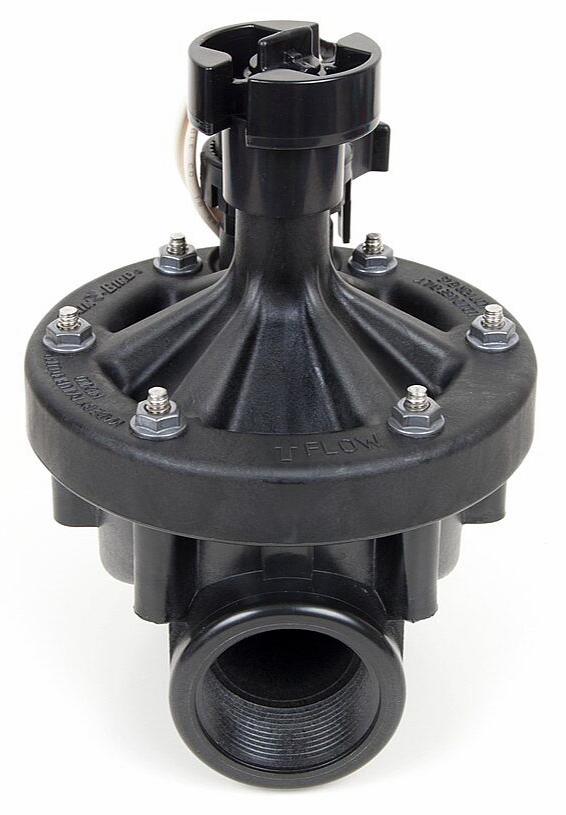

Rain Bird 100PEB In-Line Irrigation Valve, 1 Inch Nominal, 1 Inch, FNPT, Water Media, Plastic Body
Manual external bleed permits flushing debris from the system. Recommended for system start up and after repairs. | Globe configuration | Durable glass-filled nylon construction with fabric-reinforced rubber diaphragm for long life and reliable performance | Flow control handle adjusts water flows as needed | Slow closing to prevent water hammer and subsequent system damage | 24 VAC, 50/60 hz solenoid | Low flow capability for a wide range of applications | Manual internal bleed manually operates the valve without allowing water into the valve box; allows pressure regulator to be adjusted without turning the valve on at the controller first. | Normally closed, forward flow design | One-piece solenoid design with captured plunger and spring for easy servicing, prevents loss of parts during field service | Stainless steel studs molded into the body. Bonnet can be attached and removed more easily and more often without damaging threads.
Brochure: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS26bf4162-63bc-46c6-993d-1e50b0f5326c | Brochure: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS7950a9c8-0a89-4bf1-b27a-0cff8024dc2b | Brochure: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DSf583099e-db9c-4f12-b546-af899da227a5 | Brochure: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS9ae10fdc-c1e0-447f-ab08-ec0a3747b87c | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS75020ac7-606d-47d7-a8d7-d359ccc0abcc | Installation Manual: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DSa105df3f-2b58-4c7b-ac6d-6822b462e315 | Installation Manual: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS6a7b20f5-8f63-494e-97bc-f417147ae4f8 | Product Maintenance: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS201c83de-9b59-4a42-8a74-3af604d0379f | Installation Manual: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS50049979-e9e6-4c83-ab16-c08f403a73f9 | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DSf388bd01-ef23-4f62-b5ff-ed24f6f2695c | Manufacturer Web Site: http://www.rainbird.com
