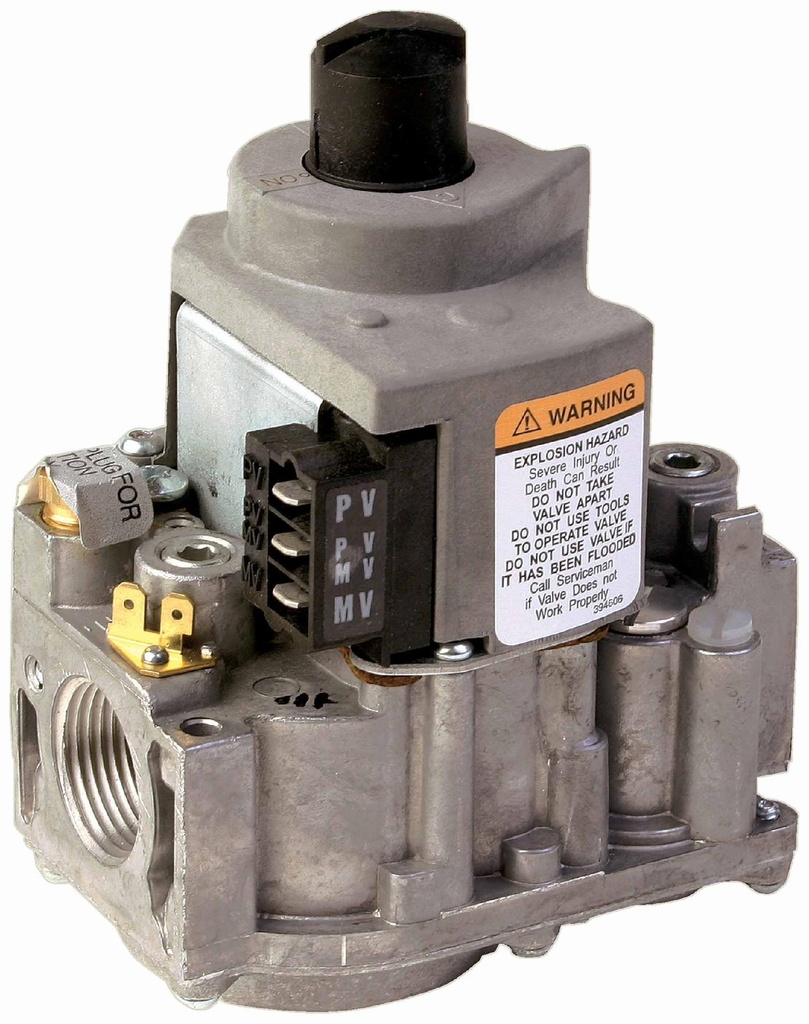

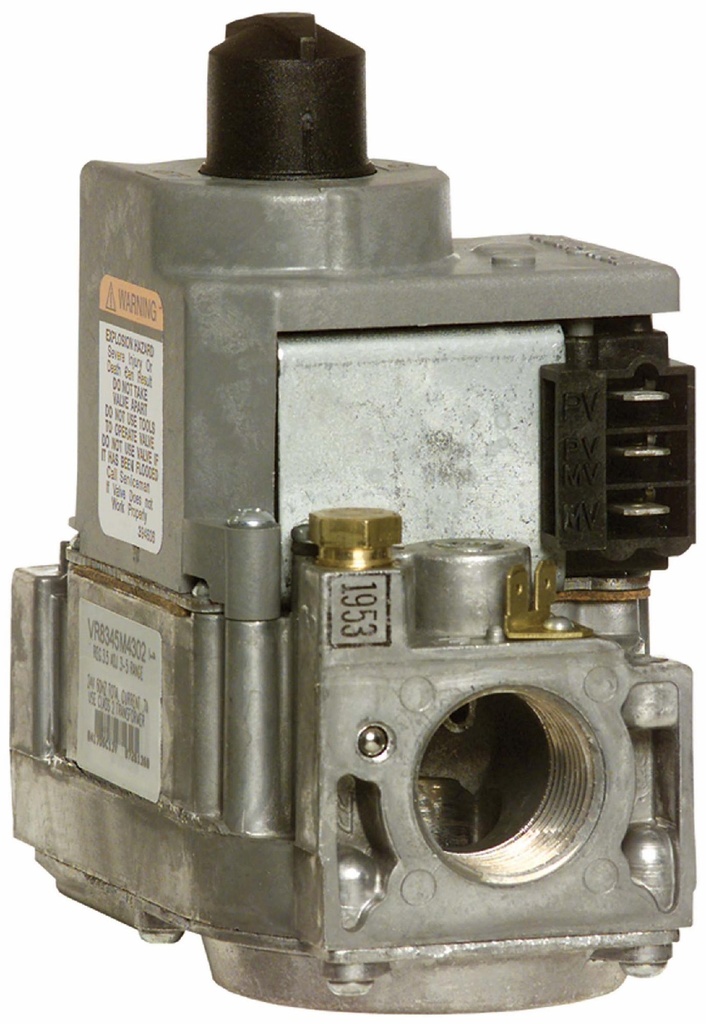

UNIVERSAL ELECTRONIC IGNITION GAS VALVE, STANDARD OPENING. 3/4" X 3/4", 24 VAC, 50/60 HZ, REG. SET 3.5" WC. IP/DSI/HSI, INCLUDES CONVERSION KIT AND TWO 3/4" X 1/2" REDUCER BUSHINGS.
Control includes manual valve, two automatic operators, pressure regulator, pilot adjustment, pilot plug and ignition adapter. | Clearly marked, keyed terminal block allows quick attachment of wires and IP/DSI/HSI jumper. | Internal inlet screen blocks contaminants in gas line from entering valve. | Replaces many IP, HSI, or DSI gas control. | All adjustments and wiring connections accessible from top of control. | Includes converter kit to adapt from natural to LP gas. | Four-inch swing radius allows easy rotation into position inside the tightest furnace vestibules. | For use with natural or manufactured gas or LP gas. | Compact size. | Two Stage
Manufacturer Web Site: https://www.honeywellhome.com/us/en/ | Installation Manual: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS24dc20ca-bc41-47b1-a9d2-74711a03be6e | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS01a8b6ee-fcaf-45ff-a823-1885450e2319 | Brochure: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS33be392c-e631-42fa-8a23-78fc6c4b748a
