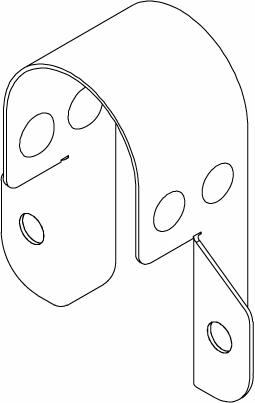

1 CPVC GALVANIZED PIPE STRAP #077

Designed to support CPVC pipe horizontally from the side or bottom of beam. Fig. 077 can only be used as a guide on top of beam or on vertical piping. Fig. 077 also acts as a restrainer to prevent the thrust of a sprinkler head during activation when mounted on top of structure. Fig. 077 may be installed onto wood using supplied fasteners or into, minimum 20 gauge, steel using two 1/4” X 1” tek type screws (not included). Features flared edges to protect piping and retaining dimples to allow for easy installation onto pipe.
