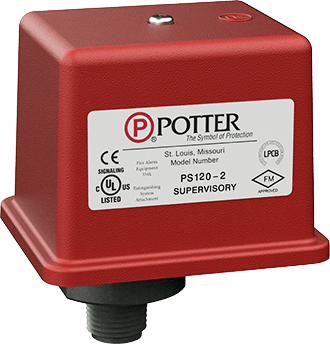

HI/LOW PRESS SWITCH 35-225 PS120-1
SKU: 3802469
The Potter PS120 Series Supervisory Pressure Actuated Switches are designed primarily to detect an increase and/or decrease from normal system pressure in automatic fire sprinkler systems. Typical applications are: Wet pipe systems with excess pressure, pressure tanks, air supplies, and water supplies. The PS120 switch is factory set for 120 PSI (8,3 BAR) normal system pressure. The switch marked with the word LOW is set to operate at a pressure decrease of 10 PSI (0,7 BAR) at 110 PSI (7,6 BAR). The switch marked with the word HIGH is set to operate at a pressure increase of 10 PSI (0,7 BAR) at 130 PSI (9 BAR).
Independent switch adjustment on two switch models, no tools needed | Non-Conductive enclosure | One or two switch models available | Two 1/2” conduit/cable entrances | Separate isolated wiring chambers | Non-corrosive pressure connection | VdS version available
Manufacturer Product Page: https://www.pottersignal.com/fire-sprinkler/pressure-switches/supervisory-ps120 | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS1b434b85-78b6-4bad-9773-170b9d73f893 | Manufacturer Web Site: http://www.pottersignal.com
