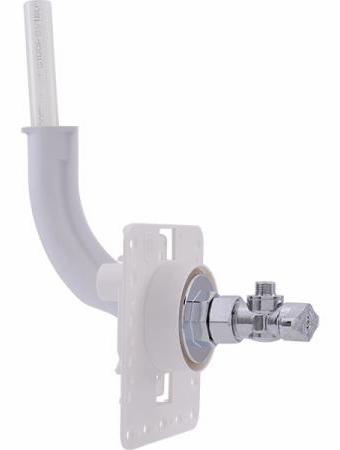

HoldRite fixture outlet boxes are designed for use in commercial and residential applications and allow for installation of water supply valves during the rough-in phase. They can be installed directly to a stud via flange holes or between studs using a hyco bar, HoldRite 170, or other HoldRite galvanized bracketing. Outlet box assemblies include a supply valve with a quarter-turn handle and a 1/4 in. or 3/8 in. threaded compression connection. Can be used with copper, PEX or CPVC. Protective debris cover included. Escutcheons, valve extension, and other accessories sold separately.
Copper & PEX tail pieces to extend beyond body for easy use of inlet pipe connection tools. | Two support let sockets & one 5/8 in. friction socket (accepts lengths of copper, PEX or CPVC) for additional support where needed. | Attaches to SB1/2/3/4 brackets, 170/170-26, hyco bars or directly to studs. | Protective cover is threaded so no additional tools or screws are necessary for install or removal. | Chrome lock nut to match valve and allows for "z" axis movement to handle multiple drywall layer options and or cabinet wall installations. | Fully assembled out of the bag. | White or chrome trim plate options (also have extended trim plate options & "goof" ring options) thread into place, no need for adhesives or fasteners. | Standard drywall configurations handled out of the box (1/2 in., 5/8 in., 1/2 in. & 5/8 in., 2 x 1/2 in., 2 x 5/8 in. | Small footprint: 2.5 in. sheetrock hole (3 in. hole size covered by goof ring plate). | Tail pieces have near 360 degree movement for installation in any orientation.
Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DSbbea4b45-75bb-4d93-9adf-2417d8c526e6 | Installation Manual: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS9e1120ca-7c5c-4ef6-b3f8-0f0c3ed349ec | Brochure: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DSe04409d1-01ce-4a40-aceb-fe31d730a303 | Manufacturer Web Site: https://www.holdrite.com/ca/en | Manufacturer Product Page: https://www.holdrite.com/ca/en/appliance-boxes/fixture-boxes/fixture-outlet-box
