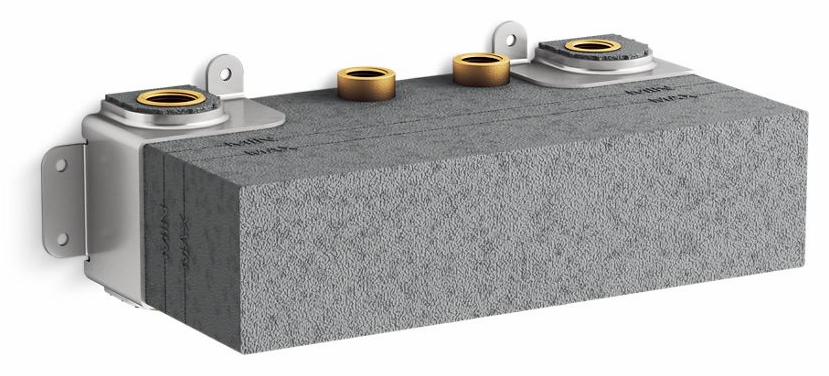

Anthem 3-Port Thermostatic Mixing Valve
SKU: 2940200
Thermostatic technology allows you to maintain consistent temperature control in your showering system for the ultimate shower experience. This precision-engineered, best-in-class thermostatic valve comes mostly assembled for easy installation and is designed for use with the elegant thermostatic valve control panel trim with recessed push-buttons. With three independently controllable ports, this valve is ideally suited for applications where up to three outlets are required.
Adjustable comfort setting (preset at approximately 104°F). | Mechanically controlled thermostatic mixing valve maintains outlet temperature throughout shower experience. | Antiscald protection. | Integrated adjustable high-temperature limit stop to control maximum water temperature. | Service stops with integral filters. | Up to 8 gpm (30.3 lpm) flow rate at 45 psi (3.1 bar) with maximum flow of 7 gpm (26.5 lpm) from one outlet. | High-flow thermostatic mixing valve. | Includes optional flow restrictor, limiting total flow to 1.75 gpm (6.6 lpm), for installations where water conservation or CEC compliance is desired | 3/4" female NPT inlet connections | 1/2" female NPT outlets | 1/2 female NPT outlets | 3/4 female NPT inlet connections
Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS1b1228d4-9979-42f5-918d-06024100c79e | Manufacturer Web Site: https://www.kohler.ca/en | Manufacturer Product Page: https://www.kohler.com/en/products/showers/shop-shower-trims-valves/anthem-three-port-thermostatic-mixing-valve-26341
