DUPLX PNL EZID1W114C3A4A6A10E24F30A
SKU: 1545770

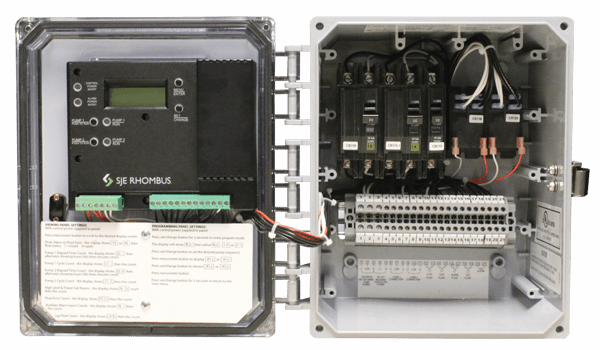

EZ Series® control panels combine circuit board technology and easy operation for on-site installations. The EZ Series® Single Phase Duplex control panel is designed to control two alternating 120/208/240V single phase pumps in water and wastewater installations. It features a digital display on the inside of the front cover for programming and system monitoring. The optional mounting post features a removable access cover to allow for easier wiring. The post can be mounted in the ground, directly over a 4×4, or conduit.
Digital Display Features: | NEMA 4X enclosure with locking latch | Incoming control/alarm power and pump power terminal block | Float error count | Circuit breakers provide pump power disconnect and branch circuit protection | Menu/Enter and Set/Change buttons for viewing and programming panel settings | Exterior alarm test/silence switch allows horn and light to be tested and horn to be silenced in an alarm condition; alarm automatically resets once alarm condition is cleared | Float connection terminal block | Alarm counts (high water/power fail) | Panel Features: | Cycle counter | Circuit breaker provides control/alarm power disconnect | Alarm horn provides audio warning of alarm condition | Control and alarm power indicators | LED display shows system information (pump elapsed time hh:mm, events/cycles) | Red LED alarm beacon on cover provides visual check of alarm condition | Elapsed time pump run | Power relays control pump(s) by switch electrical lines | Float status | Auxiliary alarm counter | Comes with 50' CL40 level sensor.
Manufacturer Product Page: https://www.sjerhombus.com/products/ez-series-duplex/ | Manufacturer Web Site: https://www.sjerhombus.com/ | Brochure: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS6540e8ab-4a88-46e5-9866-e0a9e170e026 | Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS3703daf5-f8b6-4440-99b0-c25bfe455bee | Installation Manual: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS52fb8dc4-cea1-45a5-9473-7cecd1ad4c10 | Manufacturer Web Site: http://www.sjerhombus.com/support_options/troubleshooting
