401485 78 VENT WATER
SKU: 1469005

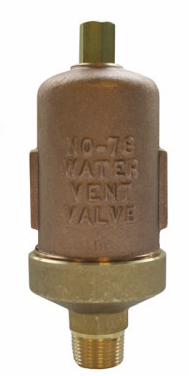

#78 HOFFMAN AIR VENT 150PSI
For use on high pressure hot or cold water or glycol mains and process applications with specific gravity greater than 0.7 | Cast brass body | Tapped at top for 1⁄8″ NPT safety drain connection for discharging moisture
Body unscrews for easy cleaning | Built-in Check Valve | 3⁄4″ NPT straight shank | Maximum operating pressure 150 psig (10.3 bar)* | Maximum hydrostatic pressure 450 psig (31.1 bar) | Maximum temperature 250˚F (121˚C)
Specification Sheet: https://productcatalog.sheret.com/DocServer/DSAnonDownloadServlet?action=download&type=product-artifacts&key=DS606ebbbf-2f99-42ec-95b7-cdf43da68212
