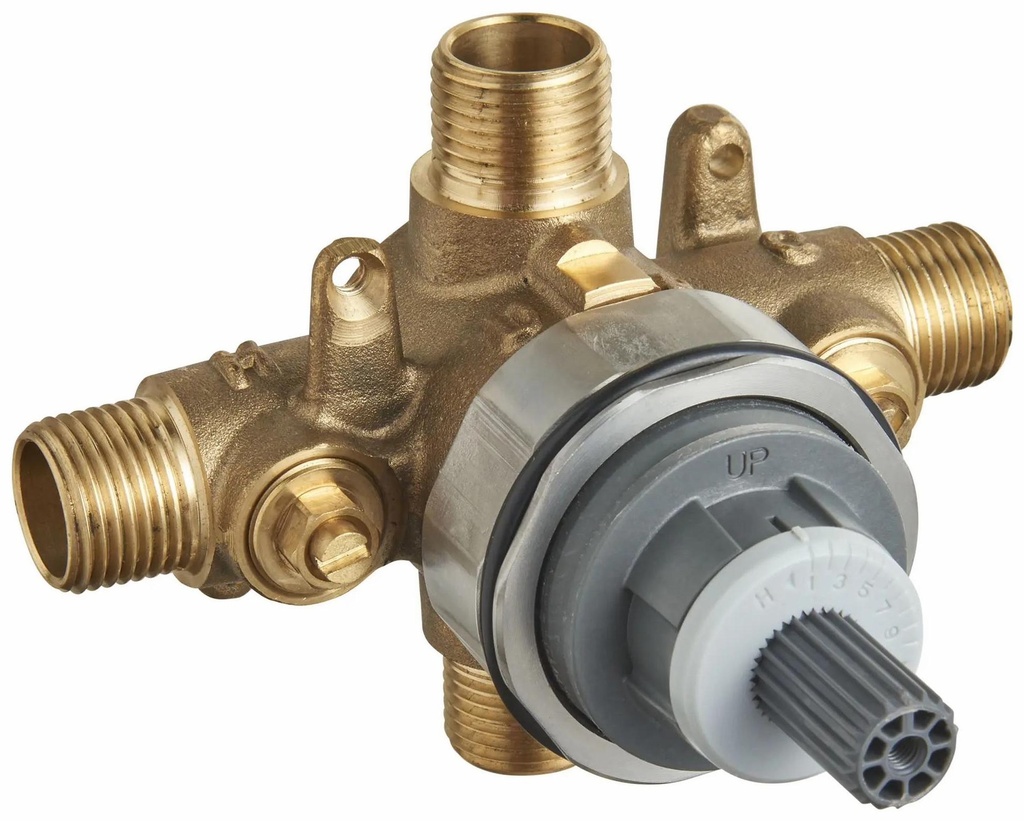

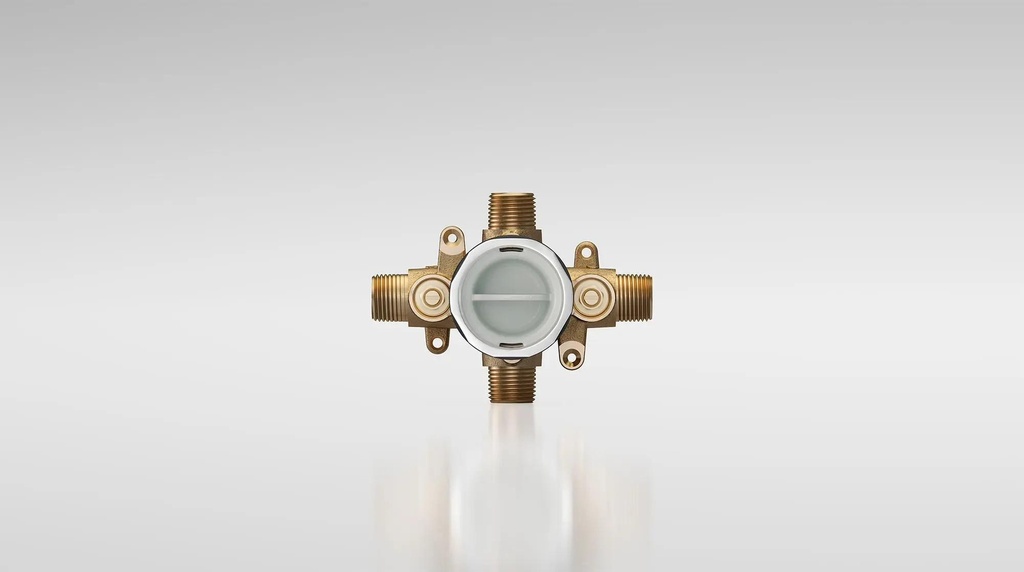

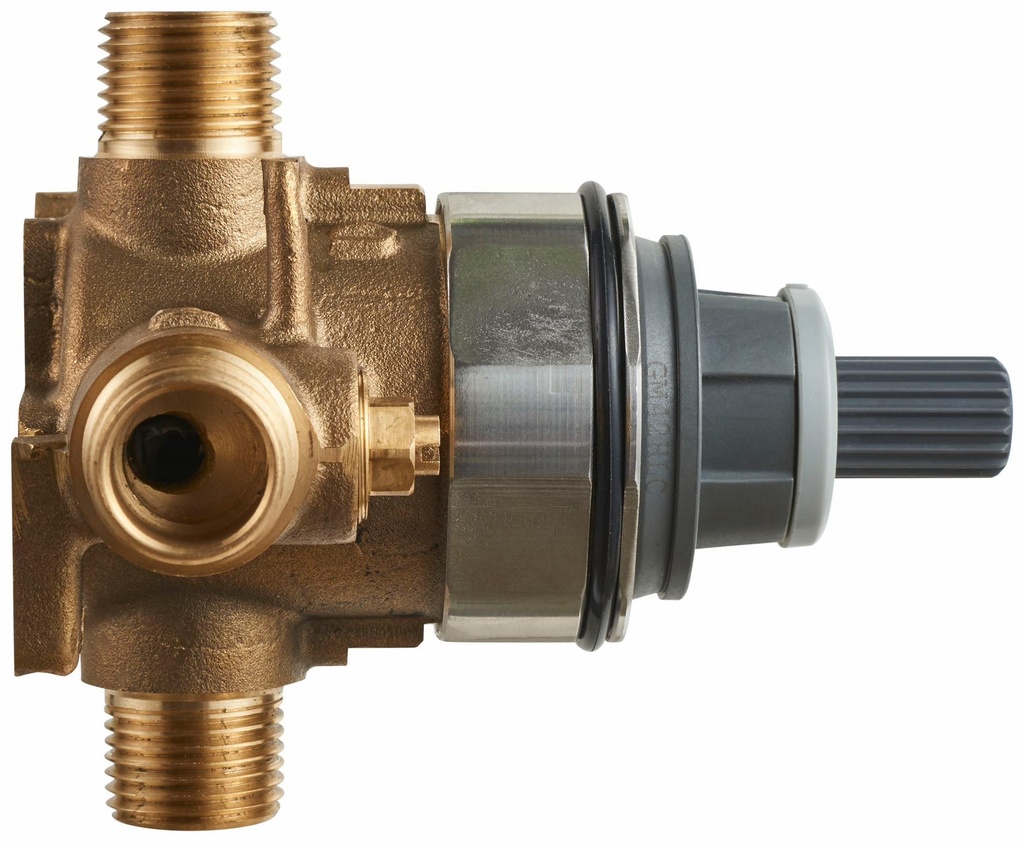

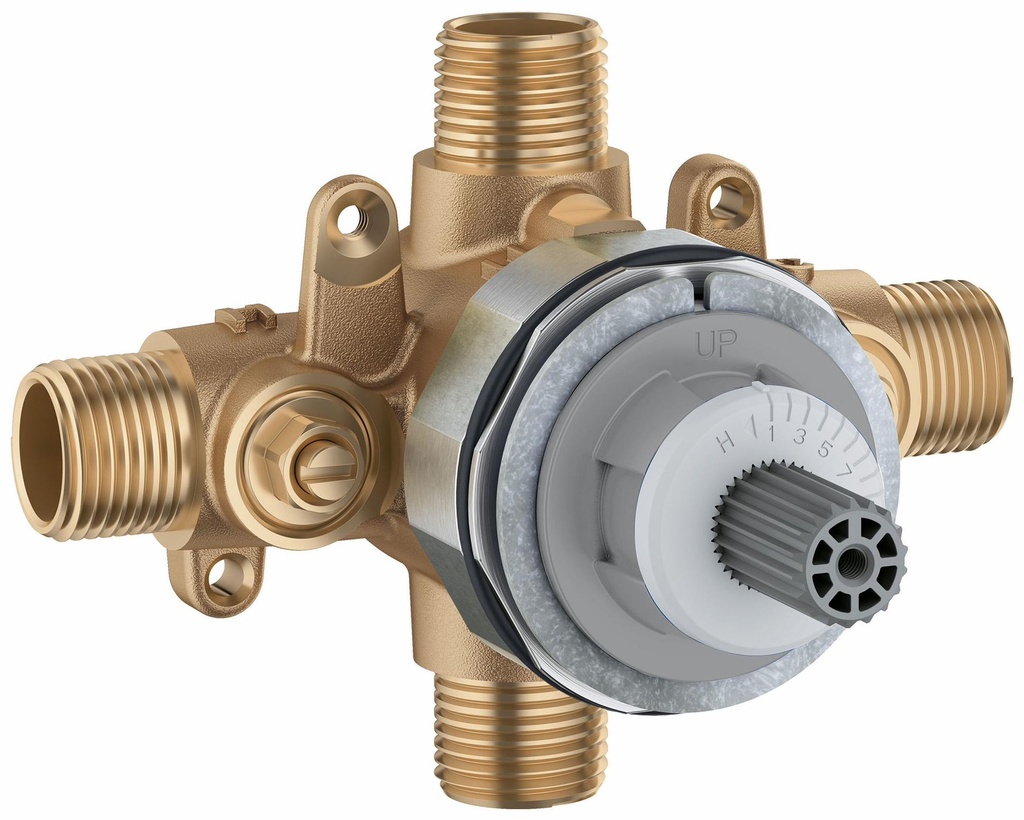

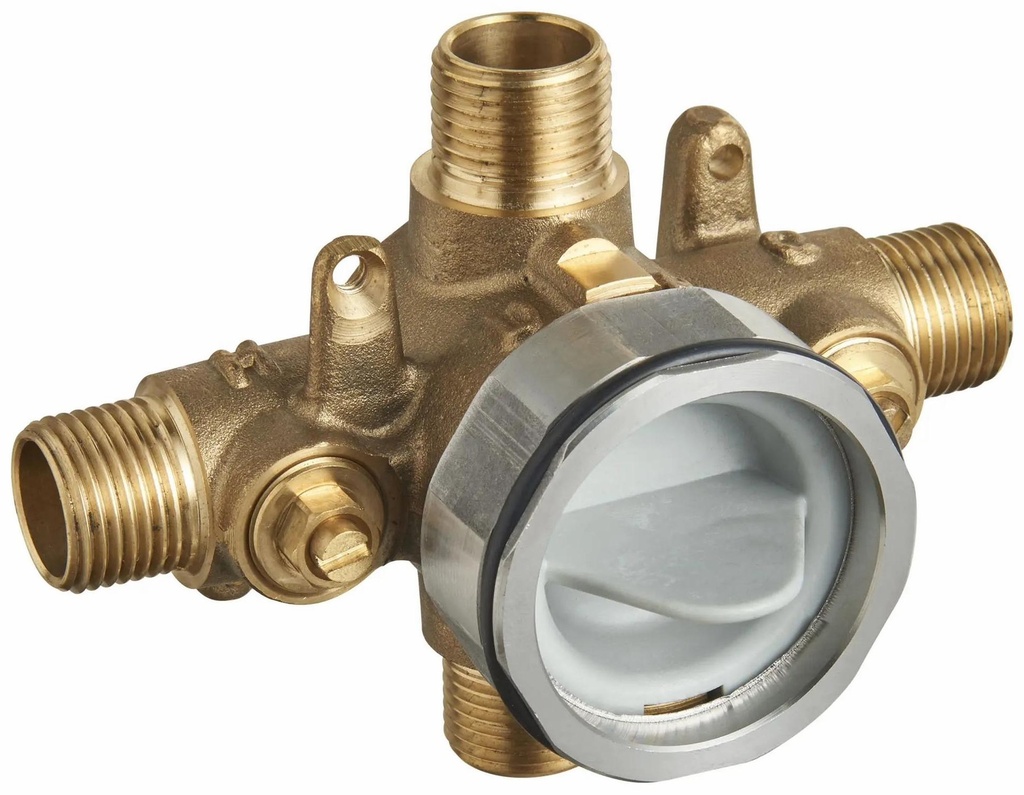

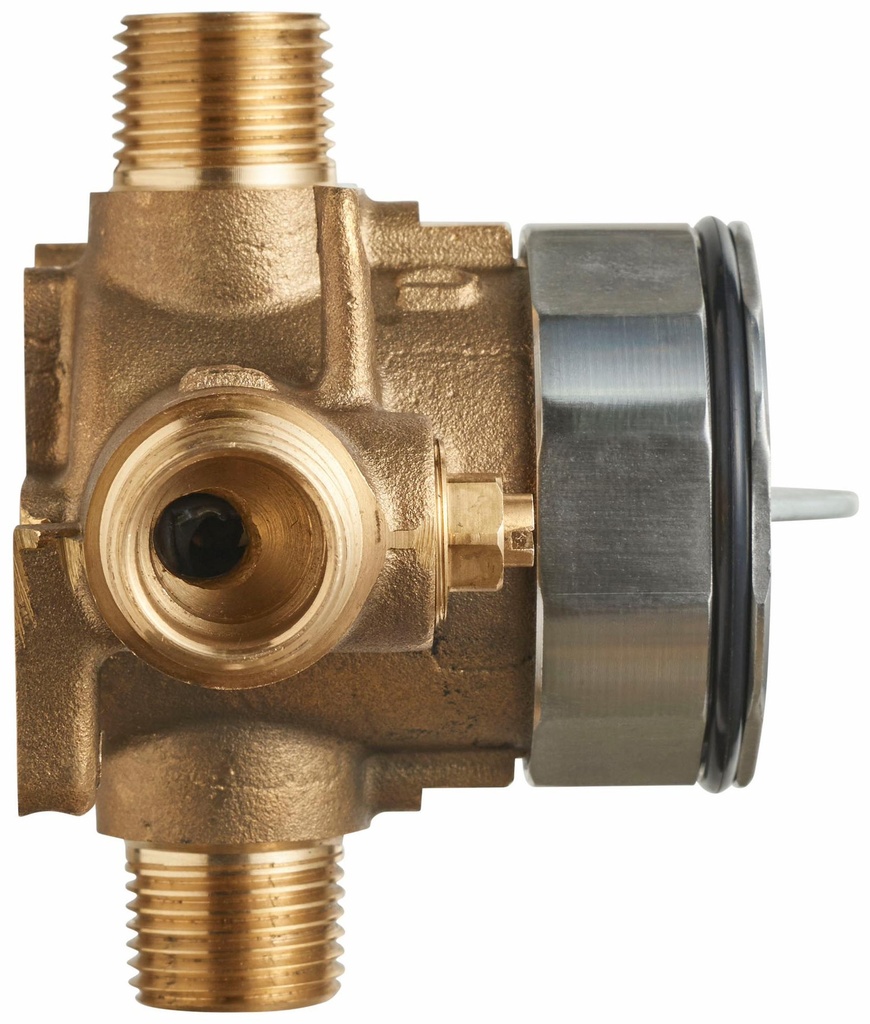

Flash Shower Rough-In Valve with Stops (Flash Connections)

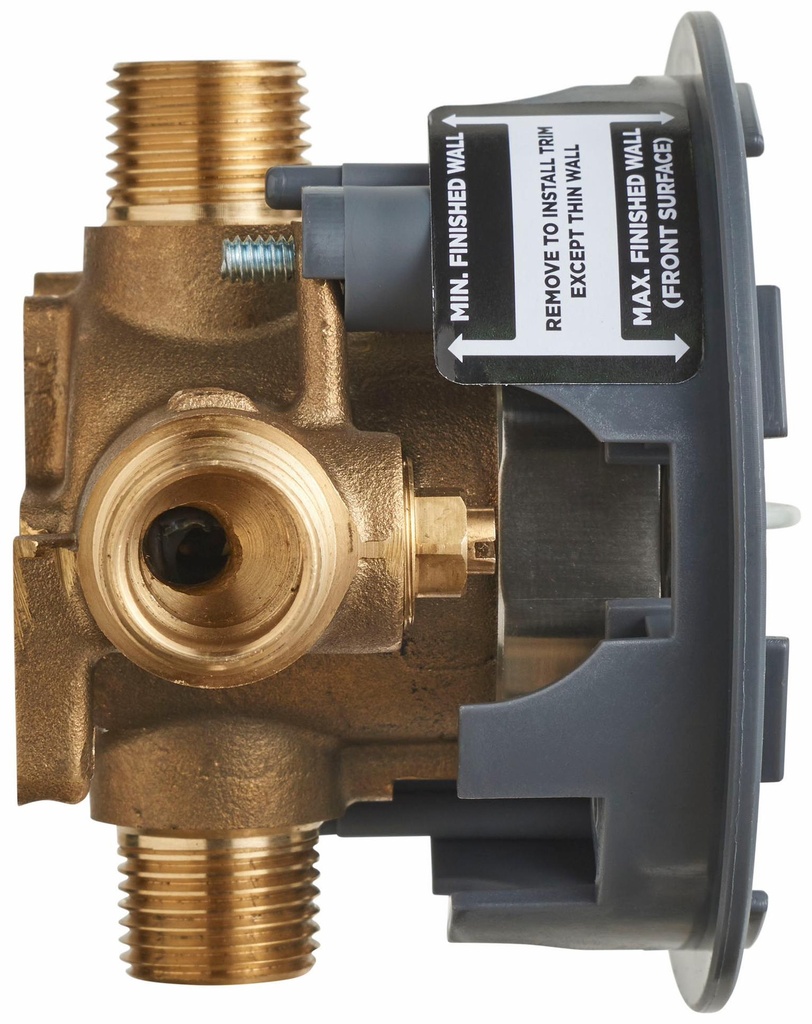

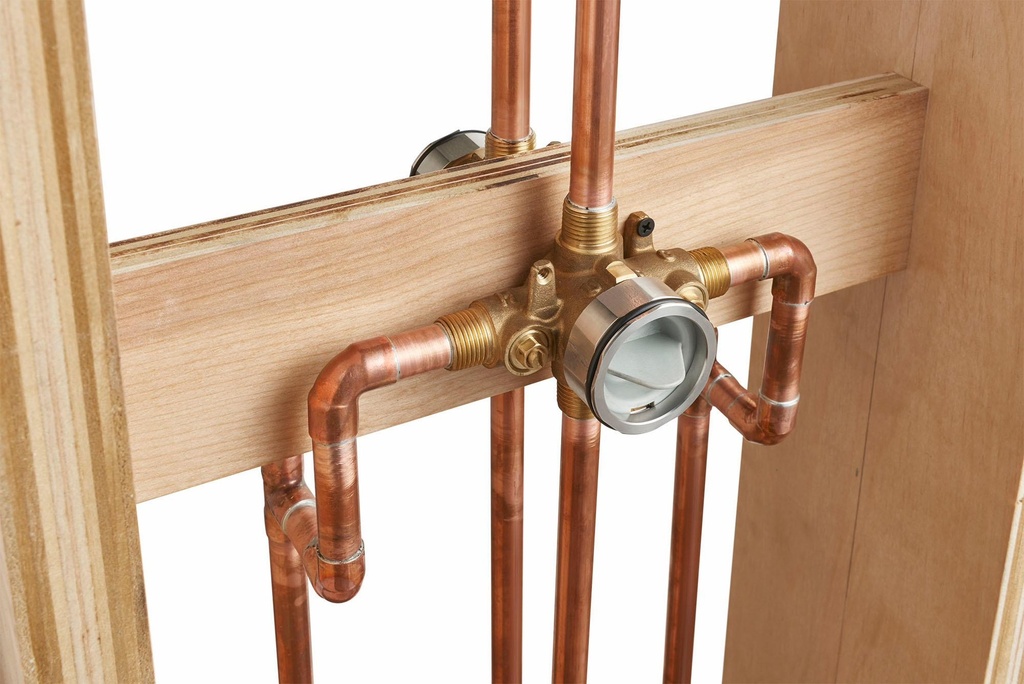

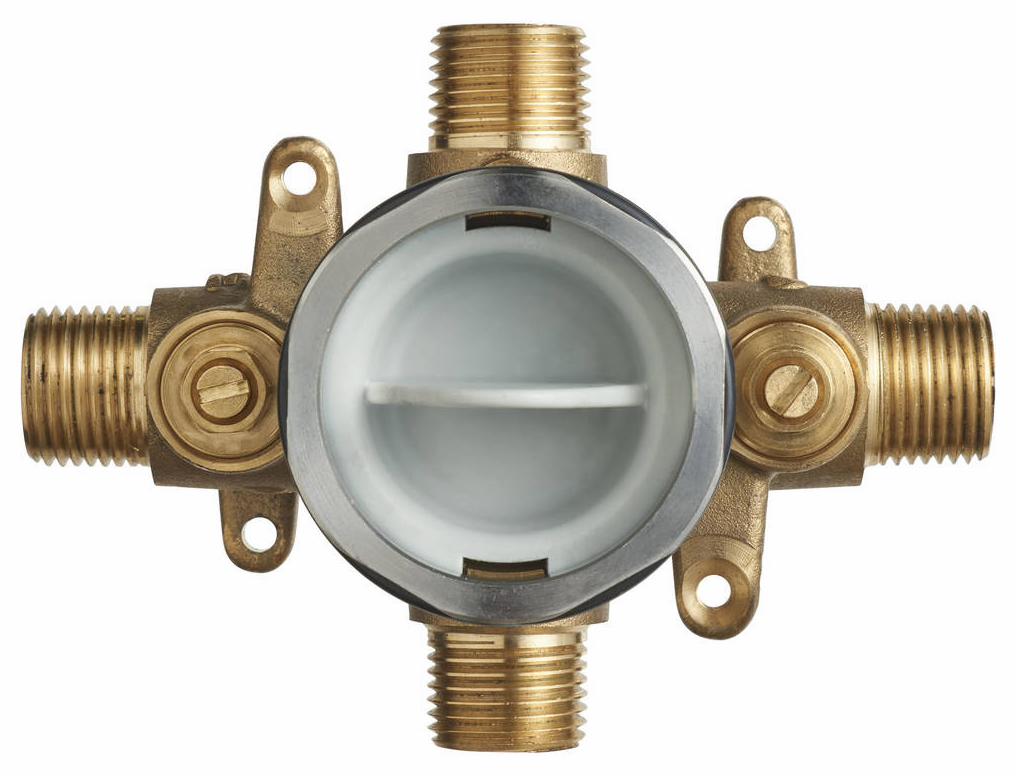

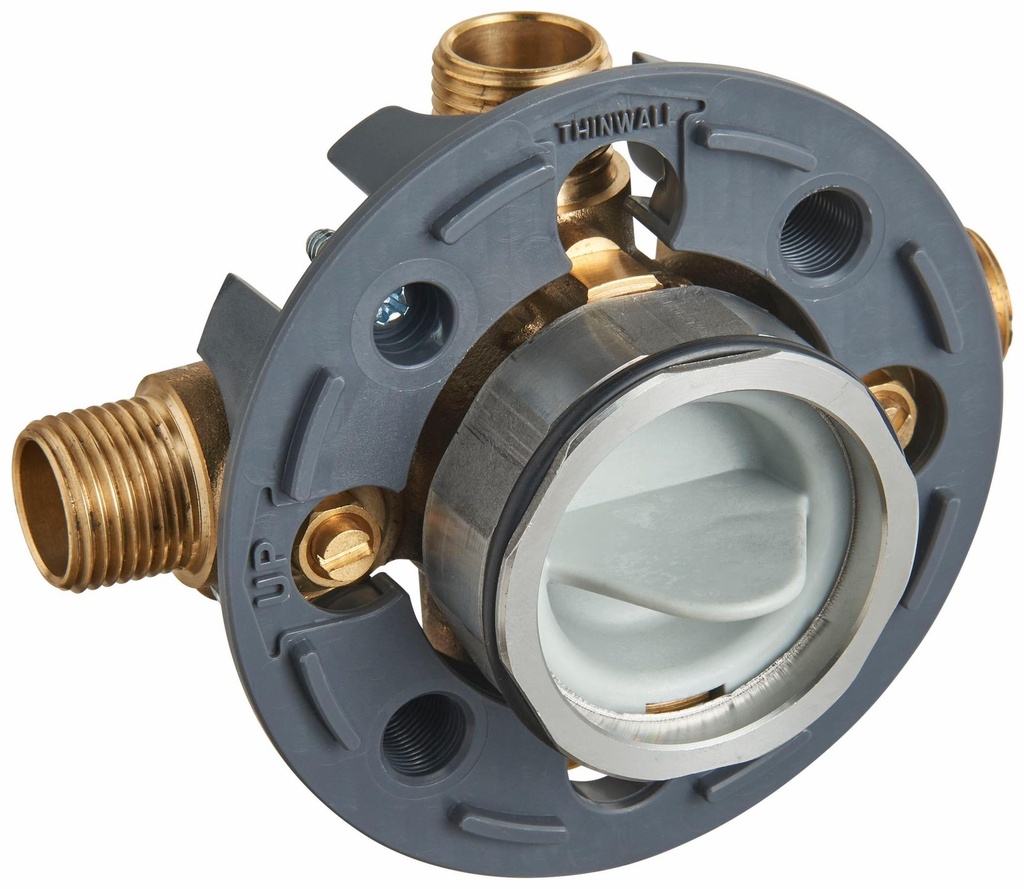

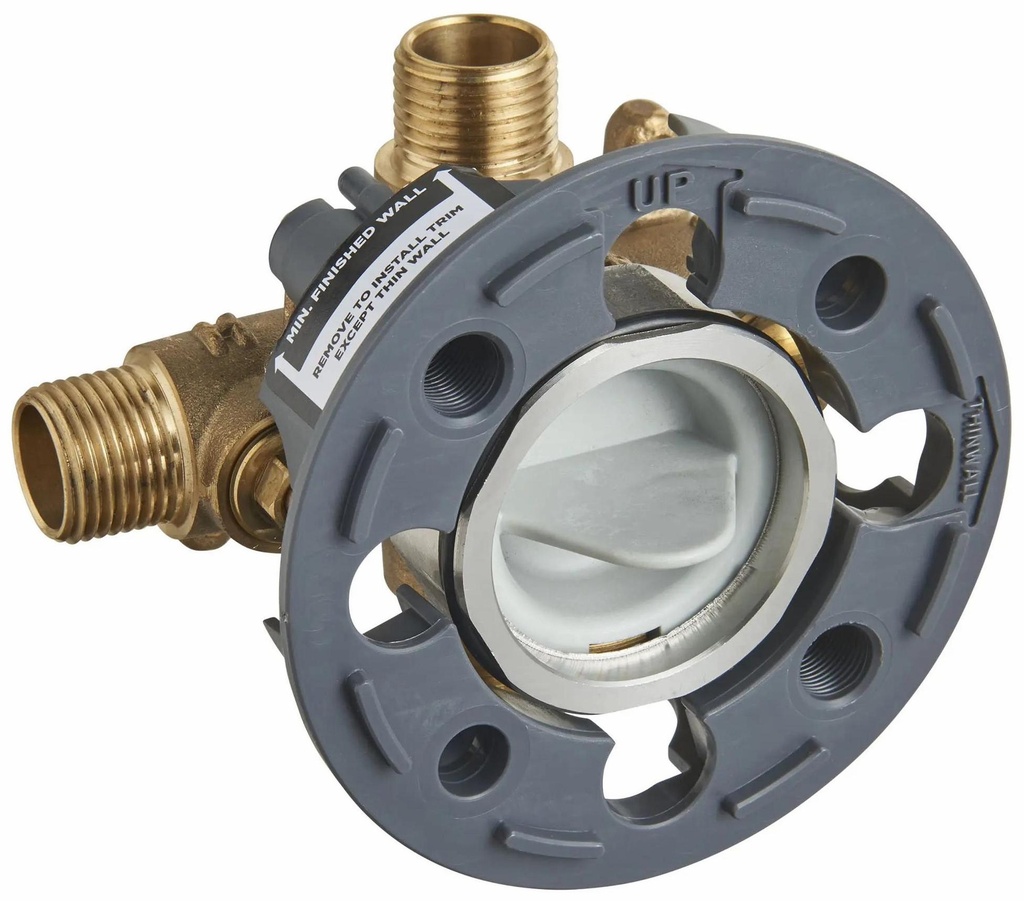

Back-to-back capability | Brass valve body | Includes test plug with stainless steel ring | Cartridge ships with trim | 1/2" Male NPT/Sweat inlets/outlets accept 1/2" copper, 1/2" iron pipe, PEX adapters | Flow rate: 5.1 gpm @ 45 psi* | Cast Brass Valve Body: Durable. Ideal material for prolonged contact with water | Back-to-Back Capability: Hot and cold can be reversed quickly and easily | Test Cap: Allows valve body to be tested and flushed without the presence of the valve cartridge. Can be tested using test cap with air (200 psi) or water (300 psi) | Includes Scredriver Stops for easy servicing at the valve | Exclusive Plaster Guard: Plaster guard is designed to protect valve and act as a guide during installation. It can serve as mounting support for thin-wall installations | Stainless Steel Retaining Ring with Flats: Secures test cap/ cartridge in place and eliminates need for screws. Flats make it simple to loosen ring for quick, easy insertion/removal of test cap/cartridge | Choice of Connections: Fast and easy installation without adaptors reducing leak points. Available connections include Universal (male thread/female sweat), PEX Crimp, PEX Cold expansion, CPVC, and Stub-outs | Wide Rough-in Range: From 1-3/4" to 2-3/4" from finished wall to the back of the valve | Flat Back: Allows valve to be mounted flush against cross brace for easy and solid installation
